6.3M Antenna

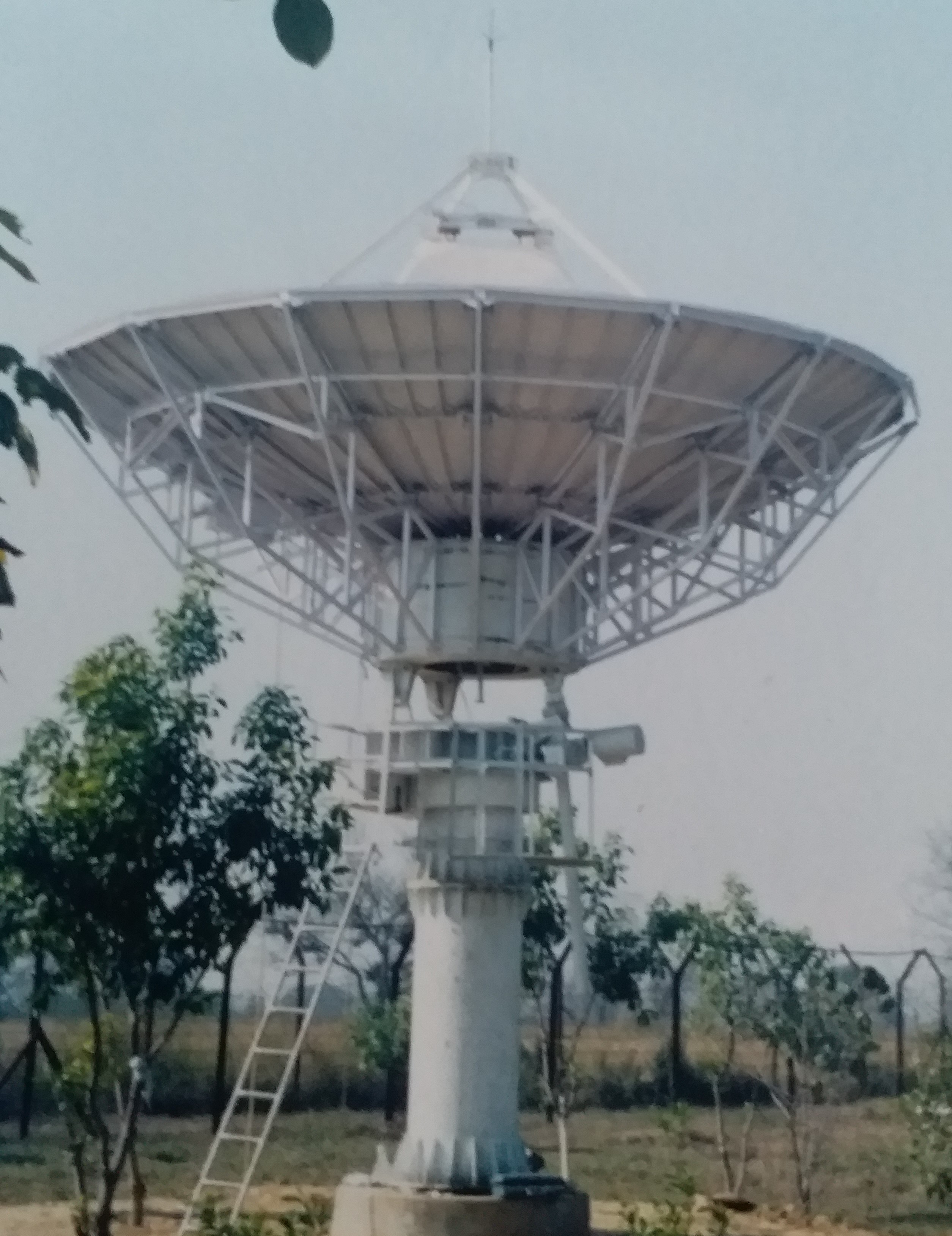

The 6.3 Mtr C Band / Ext - C Band / Ku Band Antenna system meets the international specifications and can be deployed as Hub station or receive only station.

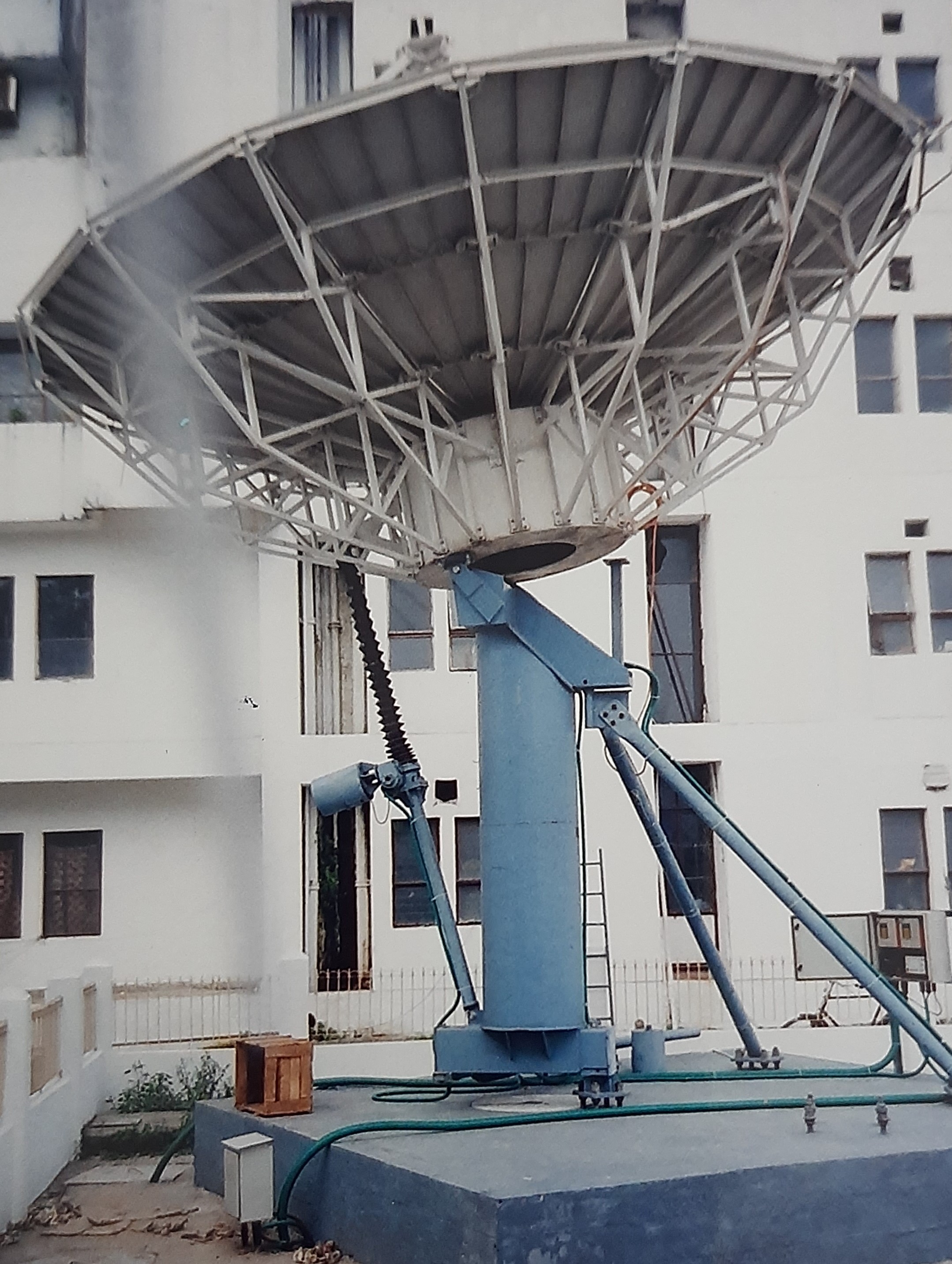

The Antenna Reflector consists of 16 no’s of dual shaped stretch formed aluminium panels, placed over the 16 no’s Trusses emanating from a Center hub. The Antenna features shaped cassegrain paraboloid configuration having conical corrugated horn, sub-reflector and shaped reflector. the Center hub is spacious to accommodate receive & Transmit Electronics.
The Antenna Mount configures Elevation over Azimuth Kingpost type of mount capable of 110° continuous coverage in Azimuth extendable to 180° in 2 positions. The Antenna withstands wind load of 100Kmph operational and 200Kmph in survival.
The Antenna meets latest spec’s of ITU-RS-580-6 recommendations.
Options :
- Feed - 2 Port / 4 Port Linear / Circular Feed in C / Ext - C / Ku Band. Composite C / Ku Band Rx only.
- De-iceing for Reflector & Feed.
- Step Track Mechanism using Antenna Control System & Beacon Receiver and Motor Controller.
- Polarisation Controller incorporated in ACU.
- Turnkey Installations, Commissioning including Civil Foundation.
