3.8 M Earth Station Antenna / VSM
3.8 M Earth Station Antenna / VSM. C Band / Ext C Band / Ku Band

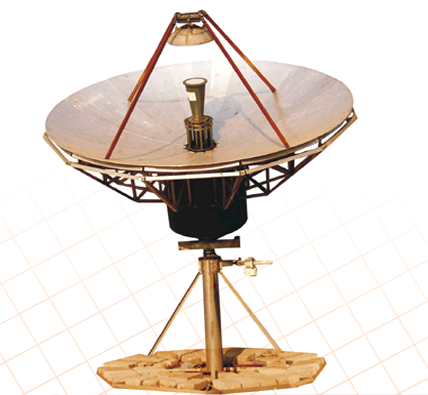

The 3.8 Mtr. Antenna System can be used as Receive Only / Rx-Tx in a wide applications. The Antenna is used as VSAT for DAMA, TDMA applications in C, Ext C & Ku Bands and as Hub station to support number of VSATs. The Reflector comes in 3 versions. First one is a Prime Focus Aluminium reflector with prime focus feed , the Second one with Gregorian feed and the Third one offset type with 4 segment GFRP reflector. The Antenna mount also comes in 2 versions, penetrating type, mostly used in Ground installations and the other Non-penetrating type, which can be mounted on the roof tops or on the ground. Cement concrete ballast of about 2000 Kgs are to be placed over the base to resist uplift forces. For Hub Applications, Gregorian configuration is supplied which has high efficiency and better performance over the normal VSAT Antennas.
Options:
- Feed : Prime focus / Offset /Gregorian.
- Motorisation.
- Manual Step Track Controller.
- Step Track Mechanism using Antenna Control System , Beacon Receiver and Motor Controller.
- Transportable Version available.
- Turnkey Installations, Commissioning including Civil Foundation .
