4.8M Model No.-482PCLPKP

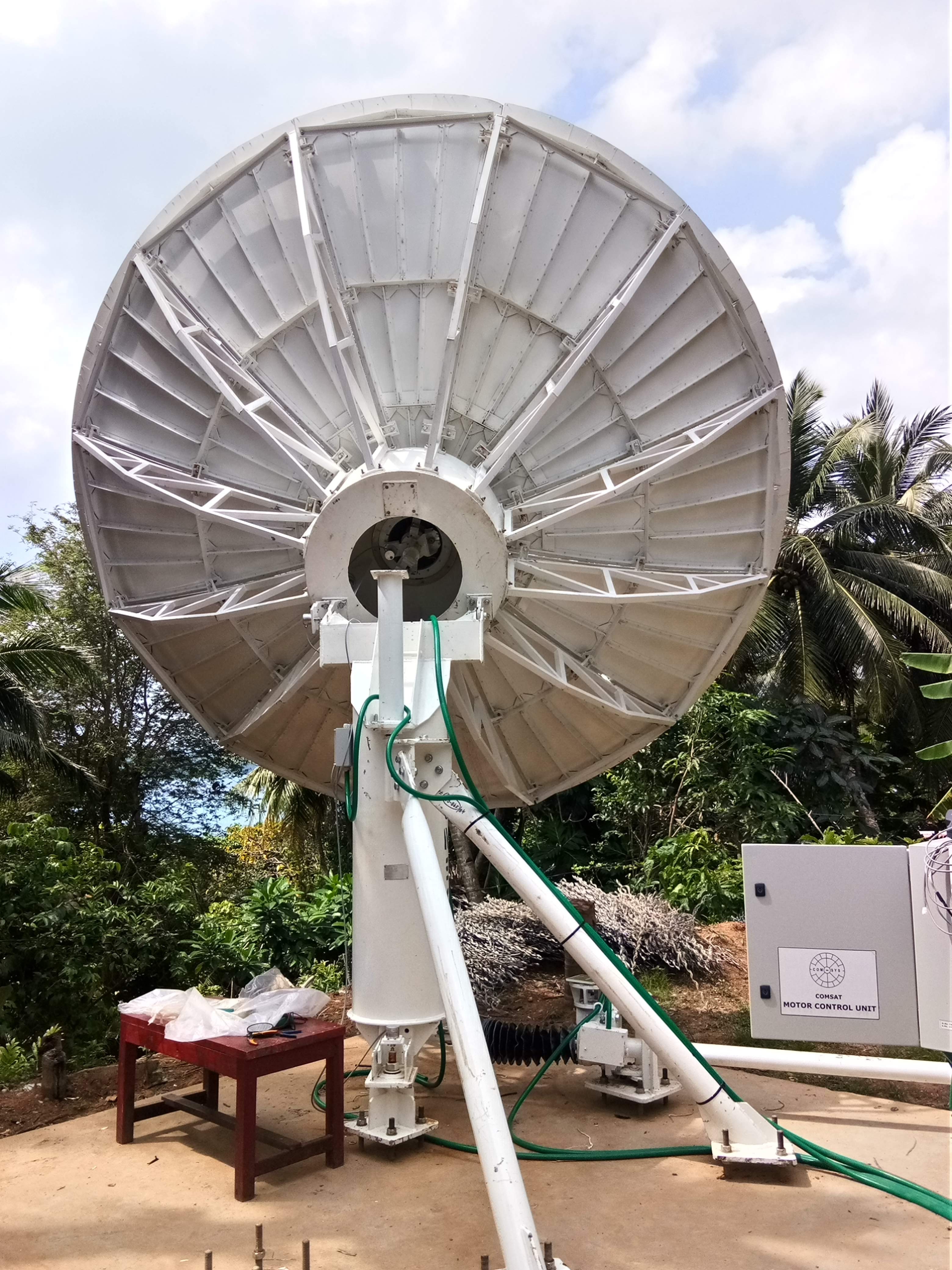

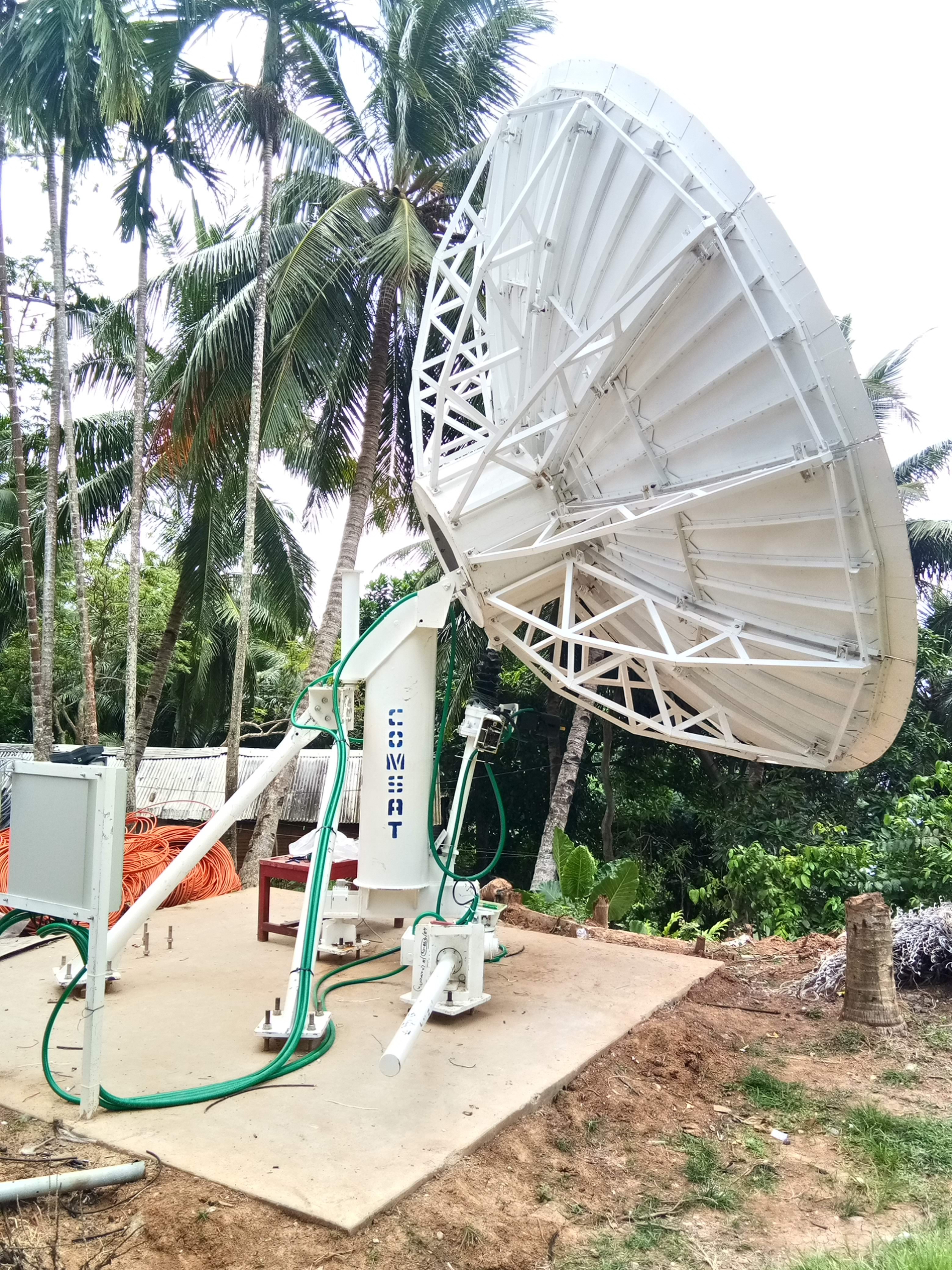

The 4.8Mtr earth station antenna is designed for high structural stability & pointing accuracies. The antenna can be used as Rx only applications in C Bands. The antenna has an elevation over azimuth type of mount, to allow for easy pointing to any visible satellite within the Geo-Stationary arc. The antenna has 110? continuous coverage in Azimuth, extendable to 180? in 2 positions. The antenna withstands wind load 100kmph operational and 200kmph survival. The antenna reflector is of dual shaped Gregorain configuration with corrugated conical feed horn and sub-reflector. The antenna meets the gain and side lobe specifications of International standards ITU-RS-580-6.
